										269


								doc/tiny-xo2-documentation.tex





										Normal file







										269


								doc/tiny-xo2-documentation.tex





										Normal file


							| @ -0,0 +1,269 @@ | ||||
| % Notes: | ||||
| % http://www.ti.com/lit/ds/symlink/tlv1117.pdf | ||||
| % http://www.latticesemi.com/~/media/LatticeSemi/Documents/UserManuals/MQ/ProgrammingCableUsersGuide.pdf?document_id=143 | ||||
| % http://www.latticesemi.com/~/media/LatticeSemi/Documents/ApplicationNotes/MO/MachXO2ProgrammingandConfigurationUsageGuide.pdf?document_id=39085 | ||||
| % http://www.latticesemi.com/~/media/LatticeSemi/Documents/DataSheets/MachXO23/MachXO2FamilyDataSheet.pdf?document_id=38834 | ||||
|
 | ||||
| \documentclass[openany,oneside]{scrbook} | ||||
| \usepackage[printonlyused, withpage]{acronym} | ||||
| \usepackage{booktabs} | ||||
| \usepackage{graphicx} | ||||
| \usepackage{color} | ||||
| \usepackage{pdfpages} | ||||
| \usepackage{pdflscape} | ||||
| \usepackage[american]{babel} | ||||
| \usepackage[babel,german=quotes]{csquotes} | ||||
| \usepackage[ | ||||
| backend=biber, | ||||
| style=numeric, | ||||
| natbib, | ||||
| bibencoding=utf8 | ||||
| %apabackref=true, | ||||
| ]{biblatex} | ||||
| \addbibresource{lit.bib} | ||||
| \DeclareLanguageMapping{american}{american-apa} | ||||
|
 | ||||
| \usepackage{draftwatermark} | ||||
| \SetWatermarkScale{5} | ||||
| \SetWatermarkLightness{0.94} | ||||
|
 | ||||
| \title{Tiny-XO2 Development Kit} | ||||
| \author{Markus Koch $\langle$markus@notsyncing.net$\rangle$} | ||||
| \publishers{\centering\includegraphics[width=.55\textwidth]{img/coverpage.png}} | ||||
|
 | ||||
| \setlength{\parindent}{0cm} | ||||
| \setlength{\parskip}{1em} | ||||
|
 | ||||
| \begin{document} | ||||
|
 | ||||
| \maketitle | ||||
|
 | ||||
| \include{acro} | ||||
|
 | ||||
| \tableofcontents | ||||
|
 | ||||
| \chapter{Introduction} | ||||
| The Tiny-XO2 is a small, versatile and cost-effective development platform for the Lattice MachXO2 \acp{fpga}. | ||||
|
 | ||||
| In addition to the \ac{fpga}, it provides a \ac{usb} to \ac{uart} converter and a crystal to include the basic set of components for any \ac{fpga} design. | ||||
|
 | ||||
|
 | ||||
| \chapter{Hardware} | ||||
| In this chapter, all available hardware functions are explained. | ||||
|
 | ||||
| \section{Overview} | ||||

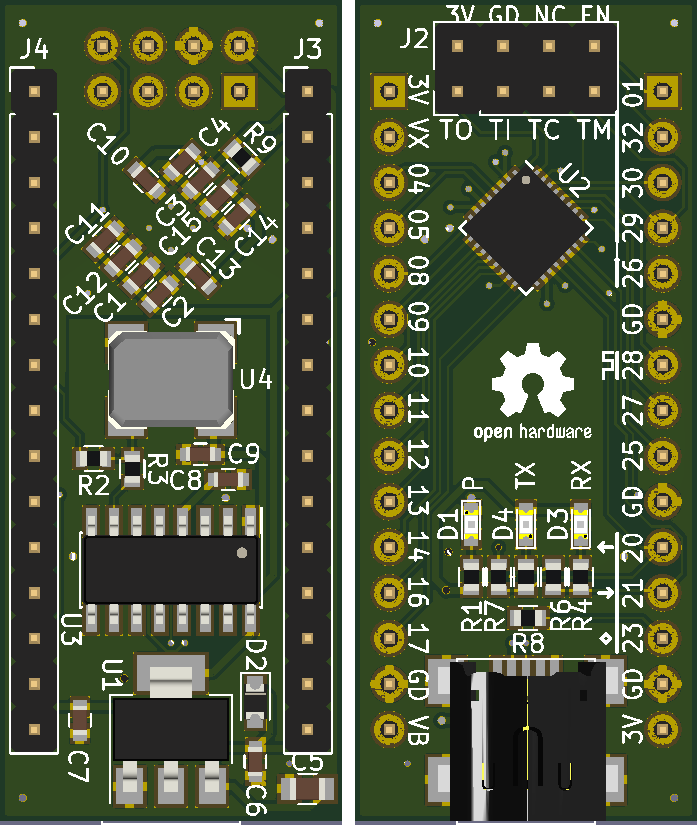

| Figure \ref{fig:overview} and Table \ref{tab:overview} show an overview of all the functions of the board. | ||||
|
 | ||||
| \begin{figure}[h] | ||||
| 	\centering | ||||
| 	\includegraphics[width=\textwidth]{img/overview.pdf} | ||||
| 	\caption{Board overview} | ||||
| 	\label{fig:overview} | ||||
| \end{figure} | ||||
|
 | ||||
| \begin{table}[h] | ||||
| 	\caption{Board function list} | ||||
| 	\label{tab:overview} | ||||
| 	\centering | ||||
| 	\begin{tabular}{ll} \toprule | ||||
| 		1 & \acs{jtag} programming header \\ | ||||
| 		2 & Lattice LCMXO2-1200HC \acs{fpga} \\ | ||||
| 		3 & Power LED (Orange) \\ | ||||
| 		4 & \acs{uart} \acs{tx} (Board $\rightarrow$ PC) \acs{led} (Red) \\ | ||||
| 		5 & \acs{uart} \acs{rx} (PC $\rightarrow$ Board) \acs{led} (Green) \\ | ||||
| 		6 & \acs{usb} socket for \acs{uart} and power \\ | ||||
| 		\midrule | ||||
| 		7 & \acs{io} headers \\ | ||||
| 		8 & 12 MHz crystal oscillator for \acs{fpga} and \acs{usb}-to-\acs{uart} converter \\ | ||||
| 		9 & CH340G \acs{usb} to \acs{uart} converter \\ | ||||
| 		10 & 5 V to 3.3 V \ac{ldo} \\ \bottomrule | ||||
| 	\end{tabular} | ||||
| \end{table} | ||||
|
 | ||||
| \section{Power Supply} | ||||
| \label{power} | ||||
| The board can be powered either via \ac{usb} or using the \texttt{VB} pin on pin header \texttt{J3}. The input voltage can range from 5 V to 15 V \parencite[page 4]{tlv1117}. A diode between the \ac{usb} jack and the \texttt{VB} pin prevents backfeeding of current into the \ac{usb} connection. | ||||
|
 | ||||
| The \texttt{3V} pins on the pin headers can be used to supply the on-board generated 3.3 V to supporting circuitry. The maximum current to be drawn from these pins is 500 mA \footnote{The maximum current of the AP1117 voltage regulator is 800 mA\parencite[page 4]{tlv1117}. Watch the temperature of the IC when drawing high amounts of current.}. | ||||
|
 | ||||
| All \ac{io} pins on header \texttt{J3} use the voltage on pin \texttt{VX} as bank voltage. By populating \texttt{R9} with a zero Ohm resistor, the bank can be connected to the on-board 3.3 V supply. In this case, \texttt{VX} becomes a normal \texttt{3V} pin. See chapter \ref{ioheaders} for more details. | ||||
|
 | ||||
| \section{\acs{fpga}} | ||||
| \label{fpga} | ||||
| The \ac{fpga} present on the board is a Lattice LCMXO2-1200HC-\emph{4}SG32C or LCMXO2-1200HC-\emph{6}SG32C. | ||||
|
 | ||||
| \begin{table}[h] | ||||
| 	\caption{Main features of the \ac{fpga} \parencite[page 3]{machxo2family}} | ||||
| 	\label{tab:fpgafeatures} | ||||
| 	\centering | ||||
| 	\begin{tabular}{ll} \toprule | ||||
| 		\textbf{Property} & \textbf{Value} \\ | ||||
| 		\ac{io}			& 21* \\ | ||||
| 		LUTs			& 1280 \\ | ||||
| 		Distributed RAM	& 10 kbits \\ | ||||
| 		EBR SRAM		& 64 kbits \\ | ||||
| 		User flash		& 64 kbits \\ | ||||
| 		Hard IPs		& 2x i2c, 1x SPI, 1x Timer / Counter, 1x PLL \\ \bottomrule | ||||
| 	\end{tabular} | ||||
| 	\\ \textit{* Not all \acp{io} may be usable. Refer to chapter \ref{ioheaders}.} | ||||
| \end{table} | ||||
|
 | ||||
| Depending on the version of the board, either speedgrade 4 or 6 are installed. Check the marking on the chip to determine which version applies. | ||||
|
 | ||||
|
 | ||||
| \section{\acs{uart} and \acsp{led}} | ||||
| \label{uart} | ||||
| The board features a CH340G \ac{usb}-to-\ac{uart} converter. Its \ac{tx} line is connected to pin \texttt{21}, the \ac{rx} line is connected to pin \texttt{20}. Pin \texttt{23} is connected to the DTR signal from the chip, which is pulled low as soon as the terminal is opened on the PC. | ||||
|
 | ||||
| Additionally, the \ac{rx} and \ac{tx} lines have an \ac{led} connected in parallel. Should a specific \ac{led} or \ac{uart} function be not wanted, refer to table \ref{tab:uartresistors} to see how to disable individual features. | ||||
|
 | ||||
| \begin{table}[h] | ||||
| 	\caption{Resistors to disable \ac{uart} functions} | ||||
| 	\label{tab:uartresistors} | ||||
| 	\centering | ||||
| 	\begin{tabular}{cll} \toprule | ||||
| 		\textbf{Resistor}	& \textbf{Description}	\\ \midrule | ||||
| 		R6					& \ac{uart} \ac{tx}	 \\ | ||||
| 		R7					& \ac{uart} \ac{rx}	 \\ | ||||
| 		R8					& \ac{uart} DTR	 \\ | ||||
| 		\midrule | ||||
| 		R4					& \ac{tx} \ac{led}	 \\ | ||||
| 		R5					& \ac{rx} \ac{led}	 \\ \bottomrule | ||||
| 	\end{tabular} | ||||
| \end{table} | ||||
|
 | ||||
| \section{Crystal Oscillator} | ||||
| \label{crystal} | ||||
| The board features a 12 MHz crystal oscillator. This is used to supply the clock to the \ac{usb}-to-\ac{uart} converter and is also connected to pin \texttt{28} of the \ac{fpga}. If the 12 MHz clock signal is not needed on the \ac{fpga}, resistor \texttt{R2} can be removed to free pin \texttt{28} as a general purpose \ac{io} pin. | ||||
|
 | ||||
| \section{\acs{io} Headers} | ||||
| \label{ioheaders} | ||||
| The \ac{io} headers break out all available \ac{io} pins of the \ac{fpga}. | ||||
|
 | ||||
| Header \texttt{J3} has no special functions and uses \texttt{VX} as bank voltage. This voltage can be tied to the 3.3 V supply of the board by installing a zero ohm resistor for component \texttt{R9}. | ||||
|
 | ||||
| Header \texttt{J4} has special functions assigned to most of its pins. Refer to Table \ref{tab:iofunctions} for a comprehensive list. In order to use these pins as general purpose \ac{io} pins, refer to the respective chapter. All \ac{io} pins on header \texttt{J4} use 3.3 V as bank voltage. | ||||
|
 | ||||
| \begin{table}[h] | ||||
| 	\caption{\acs{io} pin special functions} | ||||
| 	\label{tab:iofunctions} | ||||
| 	\centering | ||||
| 	\begin{tabular}{cll} \toprule | ||||
| 		\textbf{Pins}				& \textbf{Description}	& \textbf{Note} \\ \midrule | ||||
| 		\texttt{26}					& \acs{jtag} multiplex	& See chapter \ref{progopt:multiplex} \\ | ||||
| 		\texttt{29}, \texttt{30}, \texttt{31}, \texttt{01}	& \acs{jtag}			& See chapter \ref{progopt:always} \\ | ||||
| 		\texttt{20}, \texttt{21}, \texttt{23}				& \acs{uart} 			& See chapter \ref{uart} \\ | ||||
| 		\texttt{28}					& 12 MHz clock			& See chapter \ref{crystal} \\ \bottomrule | ||||
| 	\end{tabular} | ||||
| \end{table} | ||||
|
 | ||||
| \chapter{Software Configuration} | ||||
| \section{Comparison} | ||||
| \begin{table}[h] | ||||
| 	\caption{Comparison of configuration methods} | ||||
| 	\label{tab:confcompare} | ||||
| 	\centering | ||||
| 	\begin{tabular}{lcl} \toprule | ||||
| 		\textbf{Type}				& \textbf{Available \acs{io}}	& \textbf{Note} \\ \midrule | ||||
| 		Always-active \acs{jtag} 	& \texttt{18}					& Advanced debugging possible\\ | ||||
| 		Multiplexed \acs{jtag} 		& \texttt{21}					& Special consideration for 4 pins \\ | ||||
| 		Bootloader / None 			& \texttt{22}					& Chip can not be recovered on error\\ \bottomrule | ||||
| 	\end{tabular} | ||||
| \end{table} | ||||
|
 | ||||
| \section{Programming Options} | ||||
| \label{progopt} | ||||
|
 | ||||
| \subsection{Always-active \acs{jtag}} | ||||
| \label{progopt:always} | ||||
| This is the simplest of all configuration methods. It is supported by any Lattice programmer, including the FTDI FTxxxx based ones. | ||||
|
 | ||||
| To use this method, no special configuration needs to be applied in the Lattice Diamond software. The programming preferences in the \textit{global preferences} in the spreadsheet view should look like this \parencite{machxo2conf}: | ||||
| \begin{table}[h] | ||||
| 	\caption{Preferences for always-active \ac{jtag} mode} | ||||
| 	\label{tab:prefmux} | ||||
| 	\centering | ||||
| 	\begin{tabular}{lcl} \toprule | ||||
| 		\textbf{Name}				& \textbf{Value} \\ \midrule | ||||
| 		JTAG\_PORT					& ENABLE\\ | ||||
| 		MUX\_CONFIGURATION\_PORTS	& DISABLE \\ \bottomrule | ||||
| 	\end{tabular} | ||||
| \end{table} | ||||
|
 | ||||
| The following connections need to be made between the programmer and the \ac{jtag} header \texttt{J2}: TDO (\texttt{TO}), TDI (\texttt{TI}), TCK (\texttt{TC}), TMS (\texttt{TM}). | ||||
|
 | ||||
| Pins 29, 30, 31 and 01 are not available as user \ac{io} in this configuration. All other pins are available as normal user \ac{io}. | ||||
|
 | ||||
| \subsection{Multiplexed \acs{jtag}} | ||||
| \label{progopt:multiplex} | ||||
| This configuration allows to use the \ac{jtag} pins as normal user \ac{io} as long as some parameters are kept in mind. | ||||
|
 | ||||

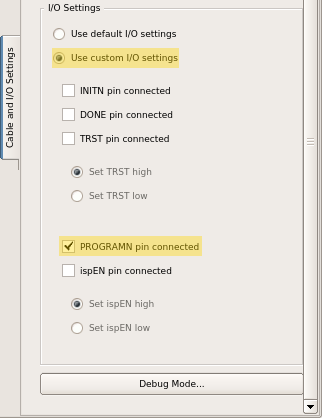

| In this mode, the function of pins \texttt{29}, \texttt{30}, \texttt{31} and \texttt{01} is switched using pin \texttt{26} (\texttt{EN}). This pin needs to be pulled low to enable \ac{jtag} mode. This can either be done manually before each programming operation or by using the \texttt{PROGRAMN} pin available on Lattice programmers. To make the automatic switchover work, the following settings need to be applied in the Diamond software \parencite{progcable}: | ||||
|
 | ||||
| \begin{figure}[h] | ||||
| 	\centering | ||||
| 	\includegraphics[width=.5\textwidth]{img/jtagmuxset.png} | ||||
| 	\caption{\ac{jtag} settings for automatic pin multiplexing} | ||||
| 	\label{fig:jtagmuxset} | ||||
| \end{figure} | ||||
|
 | ||||
| To enable this mode, the following settings need to be configured in the \textit{global preferences} in the spreadsheet view in Lattice Diamond: | ||||
| \begin{table}[h] | ||||
| 	\caption{Preferences for multiplexed \ac{jtag} mode} | ||||
| 	\label{tab:prefmux} | ||||
| 	\centering | ||||
| 	\begin{tabular}{lcl} \toprule | ||||
| 		\textbf{Name}				& \textbf{Value} \\ \midrule | ||||
| 		JTAG\_PORT					& DISABLE \\ | ||||
| 		MUX\_CONFIGURATION\_PORTS	& ENABLE \\ \bottomrule | ||||
| 	\end{tabular} | ||||
| \end{table} | ||||
|
 | ||||
| When programming the \ac{fpga} in circuit, the user needs to ensure that all \ac{jtag} lines are high-Z when programming actions are active (when \texttt{26} (\texttt{EN}) is low). Also, the \ac{jtag} bit patterns should not affect any components attached to the \ac{jtag} pins during a programming operation. | ||||
|
 | ||||
| The following connections need to be made between the programmer and the \ac{jtag} header \texttt{J2}: TDO (\texttt{TO}), TDI (\texttt{TI}), TCK (\texttt{TC}), TMS (\texttt{TM}), PROGRAMN (\texttt{EN}). | ||||
|
 | ||||
| Pin \texttt{26} is not available as user \ac{io} in this configuration. Care needs to be taken when selecting which components to connect to pins \texttt{29}, \texttt{30}, \texttt{31} and \texttt{01}. All other pins are available as normal user \ac{io}. | ||||
|
 | ||||
| \subsection{\acs{uart} Bootloader} | ||||
| \label{progopt:bootloader} | ||||
| \textit{NYI. TODO.} | ||||
|
 | ||||
| {\color{red}WARNING: Setting these parameters will \textbf{permanently} disable the \ac{jtag} port. This might render the device unusable. Only apply this if you really know what you are doing.} | ||||
|
 | ||||
| \begin{table}[h] | ||||
| 	\caption{Preferences for bootloader mode} | ||||
| 	\label{tab:prefmux} | ||||
| 	\centering | ||||
| 	\begin{tabular}{lcl} \toprule | ||||
| 		\textbf{Name}				& \textbf{Value} \\ \midrule | ||||
| 		JTAG\_PORT					& DISABLE \\ | ||||
| 		MUX\_CONFIGURATION\_PORTS	& DISABLE \\ \bottomrule | ||||
| 	\end{tabular} | ||||
| \end{table} | ||||
|
 | ||||
| All \ac{io} pins are available as user \ac{io}. | ||||
|
 | ||||
|
 | ||||
| \chapter{Appendix} | ||||
| \section{Version History} | ||||
| \begin{table}[h] | ||||
| 	\caption{Version history} | ||||
| 	\label{tab:versionhistory} | ||||
| 	\centering | ||||
| 	\begin{tabular}{ll} \toprule | ||||
| 		\textbf{Version}				& \textbf{Comment} \\ \midrule | ||||
| 		2017-11-10 & Initial draft\\ \bottomrule | ||||
| 	\end{tabular} | ||||
| \end{table} | ||||
|
 | ||||
| \section{Bibliography} | ||||
| \printbibliography[heading=none] | ||||
|
 | ||||
| \section{Schematic} | ||||
| See next page. | ||||
| \begin{landscape} | ||||
| 	\includepdf[angle=90,pages={1-}]{res/schematic.pdf} | ||||
| \end{landscape} | ||||
|
 | ||||
| \end{document} | ||||
		Loading…



			x




		Reference in New Issue

	Block a user
